Vascular access site complications—including dissections, stenoses, perforations, or (pseudo)aneurysms—remain an important issue in minimally invasive cardiovascular procedures such as percutaneous coronary intervention, catheter-based valve intervention, implantation of mechanical cardiac support, percutaneous transluminal angioplasty, and endovascular aneurysm repair.

Vascular complications after small-caliber femoral artery access (such as access for coronary angiography and percutaneous coronary intervention) have dramatically decreased over time, from 3.1% in 1998 to 1% in 2007.1 However, they have seemingly resurged because of the so-called radial paradox: a falling familiarity with femoral access techniques resulting from the currently preferred transradial approach.2 Vascular complications after the use of larger-caliber devices are reported to be as high as 2.2% to 7.9% in transcatheter aortic valve implantation and 12% to 22% in endovascular aneurysm repair.3-9 Access site complications are associated with a prolonged hospital stay and increased mortality.10

In terms of the number of attempts, inadvertent venipuncture, and mean time to insertion, puncture guidance with real-time ultrasound outperforms fluoroscopy or reliance on anatomic landmarks.11 The unique ability to differentiate between veins and arteries, identify specific arterial anatomic features (eg, the exact location of the femoral bifurcation and the epigastric artery), appreciate obstructive and/or calcified atherosclerotic disease, and monitor the needle vessel entry in real time has galvanized the adoption of ultrasound for optimizing the arterial access technique.12 Ultrasound is also readily available and precludes radiation exposure. After a steep learning curve, ultrasound-guided access is an easy technique to adopt.11

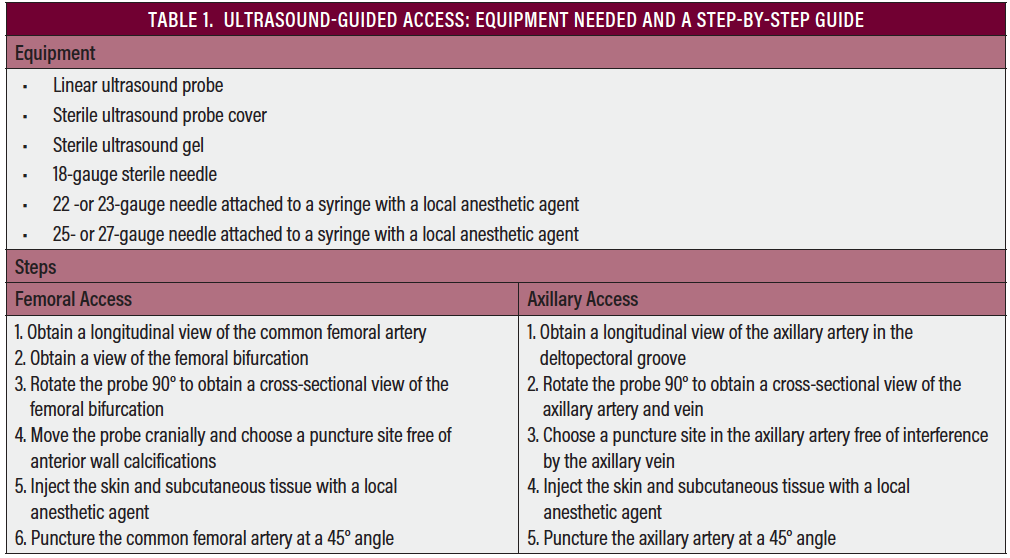

At the conclusion of a procedure, closure devices are most successful when proper access site management has been ensured. Therefore, this article features step-by-step tutorials for ultrasound-guided access of the common femoral artery and the axillary artery (Table 1).

ANATOMIC CONSIDERATIONS

Common Femoral Artery

The proximal transition of the common femoral artery to the external iliac artery is defined by the inguinal ligament and the origin of the inferior epigastric artery. Distally, the common femoral artery bifurcates into the superficial and deep femoral arteries. Punctures that are too high (ie, cranial to the inferior epigastric artery origin) are within the retroperitoneal space and are at risk for covert retroperitoneal bleeds. Punctures that are too low can affect the deep or superficial femoral artery (causing flow-limiting dissections, aneurysms or pseudoaneurysms, arteriovenous fistulas) and jeopardize leg perfusion. Furthermore, closure device failure may result from improper puncture location, whether too high or too low.

To ensure puncture below the inguinal ligament, the inferior border of the inferior epigastric artery is used as a reference—not to be confused with the origin of the inferior epigastric artery, which lies within the retroperitoneal space. The common femoral artery usually lies in the lower two-thirds of the femoral head; however, this assumption may be incorrect in patients with a high or low femoral bifurcation.

Axillary Artery

The axillary artery lies in the deltopectoral groove and represents the continuation of the subclavian artery at the height of the lateral margin of the first rib. It continues as the brachial artery after passing the lower margin of the teres major muscle. The regions of interest for axillary artery access are the middle and lateral part of the axillary artery in between the origins of the lateral thoracic artery and the subscapular artery. Punctures medial to the origin of the lateral thoracic artery reside in the thoracic space, such as the bony structure of the humeral head. Punctures here cannot be manually compressed and are associated with consequent risk for a hematothorax or pneumothorax. Punctures that are lateral to the minor pectoral muscle can cause damage to the brachial plexus.

TECHNIQUE

Equipment

A 5- to 10-MHz linear ultrasound probe, a probe cover, sterile ultrasound gel, a local anesthetic agent, and 18-, 22-, and 25-gauge needles are needed for ultrasound-guided access under sterile conditions. Each probe has a reference marker, which is often a vertical line on the probe. By convention, we recommend starting an ultrasound examination by holding the probe so that the vertical marker is facing upward for the femoral artery (Figure 1) and toward the patient’s chin for the axillary artery (Figure 2).

Figure 1. Step-by-step guide for ultrasound-guided femoral access.

Figure 2. Step-by-step guide for ultrasound-guided axillary access.

Femoral Access

Step one. The linear probe is used to obtain a longitudinal view of the common femoral artery and femoral bifurcation. At the height of the femoral bifurcation, the probe is turned 90° (counterclockwise for the right femoral artery and clockwise for the left femoral artery) to obtain a cross-sectional “double-barrel” view of the femoral bifurcation. As the probe is moved distally, the superficial femoral artery will appear above the deep femoral artery by moving the probe up the common femoral artery. A proper puncture site is identified by moving the probe up in the cranial direction along the common femoral artery in a region free of anterior and, preferably, posterior wall calcifications.

Step two. With the ultrasound probe held with the left hand to offer continuous visual monitoring of the common femoral artery in the short-axis view, a local anesthetic (eg, lidocaine) is injected with the right hand using a small 25- or 27-gauge needle to numb the superficial skin layers. The deeper subcutaneous tissue is anesthetized with a 22- or 23-gauge needle, starting deep around, but not in, the arterial wall and working backward toward the level of the skin. Care should be taken to not inject the anesthetic into the vessel.

Video 1. Step-by-step guide for ultrasound guided femoral access.

Step three. After adequate anesthesia and continuous direct ultrasound vision, an 18-gauge needle is used for arterial puncture at a 45° angle. The needle entry in the designated common femoral artery location is monitored first by “tenting” of the common femoral artery and then by subsequent appearance of pulsatile arterial blood from the needle.

Axillary Access

Step one. The linear probe is used to identify the axillary artery in the deltopectoral groove. Holding the linear probe with its vertical reference marker pointing upward will often provide a short-axis view of the arterial structure, and a 90° probe rotation may provide a longitudinal view of the axillary artery. Color Doppler signals can be used to help differentiate the artery from the axillary vein. A proper puncture site is identified, free from anterior interference of the axillary vein. Again, color Doppler or compression can be applied to differentiate between artery and vein.

Step two. The skin and subcutaneous tissue are anesthetized with a local anesthetic agent using a 25- to 27-gauge needle and a 22- to 23-gauge needle, respectively.

Step three. The axillary artery is punctured with an 18-gauge needle at a 45° angle.

CONCLUSION

The ultrasound-guided vascular access technique is an important asset in contemporary, large-bore, catheter-based endovascular interventions and ensures successful closure. Operators should develop proficiency in this technique to limit access-related complications and improve procedure outcomes.

1. Applegate RJ, Sacrinty MT, Kutcher MA, et al. Trends in vascular complications after diagnostic cardiac catheterization and percutaneous coronary intervention via the femoral artery, 1998 to 2007. JACC Cardiovasc Interv. 2008;1:317-326.

2. Azzalini L, Tosin K, Chabot-Blanchet M, et al. The benefits conferred by radial access for cardiac catheterization are offset by a paradoxical increase in the rate of vascular access site complications with femoral access: the Campeau radial paradox. JACC Cardiovasc Interv. 2015;8:1854-1864.

3. Mack MJ, Leon MB, Thourani VH, et al. Transcatheter aortic-valve replacement with a balloon-expandable valve in low-risk patients. N Engl J Med. 2019;380:1695-1705.

4. Leon MB, Smith CR, Mack MJ, et al. Transcatheter or surgical aortic-valve replacement in intermediate-risk patients. N Engl J Med. 2016;374:1609-1620.

5. Popma JJ, Deeb GM, Yakubov SJ, et al. Transcatheter aortic-valve replacement with a self-expanding valve in low-risk patients. N Engl J Med. 2019;380:1706-1715.

6. Reardon MJ, Van Mieghem NM, Popma JJ, et al. Surgical or transcatheter aortic-valve replacement in intermediate-risk patients. N Engl J Med. 2017;376:1321-1331.

7. Carroll JD, Vemulapalli S, Dai D, et al. Procedural experience for transcatheter aortic valve replacement and relation to outcomes: the STS/ACC TVT registry. J Am Coll Cardiol. 2017;70:29-41.

8. Nelson PR, Kracjer Z, Kansal N, et al. A multicenter, randomized, controlled trial of totally percutaneous access versus open femoral exposure for endovascular aortic aneurysm repair (the PEVAR trial). J Vasc Surg. 2014;59:1181-1193.

9. Kappetein AP, Head SJ, Généreux P, et al. Updated standardized endpoint definitions for transcatheter aortic valve implantation: the Valve Academic Research Consortium-2 consensus document. Eur Heart J. 2012;33:2403-2418.

10. Doyle BJ, Ting HH, Bell MR, et al. Major femoral bleeding complications after percutaneous coronary intervention: incidence, predictors, and impact on long-term survival among 17,901 patients treated at the Mayo Clinic from 1994 to 2005. JACC Cardiovasc Interv. 2008;1:202-209.

11. Seto AH, Abu-Fadel MS, Sparling JM, et al. Real-time ultrasound guidance facilitates femoral arterial access and reduces vascular complications: FAUST (femoral arterial access with ultrasound trial). JACC Cardiovasc Interv. 2010;3:751-758.

12. van Wiechen MP, Ligthart JM, Van Mieghem NM. Large-bore vascular closure: new devices and techniques. Interv Cardiol. 2019;14:17-21.
