For patients who present with an ST-segment elevation myocardial infarction (STEMI), the gold standard strategy for achieving reperfusion is primary percutaneous coronary intervention (PCI).1 However, this invasive approach combined with contemporary aggressive antithrombotic and antiplatelet therapies exposes patients to a higher risk of access site bleeding complications, so it is important to consider any strategy that may potentially reduce these complications.2 Utilizing radial access rather than femoral access for coronary intervention is associated with less access site bleeding and fewer vascular complications.3-5 Radial access rates for PCI in the United States have historically been low, but they are rising given the accumulating data showing the benefit of a radial-first approach and the increasing number of interventional cardiologists trained in radial access. Data from the National Cardiovascular Data Registry CathPCI Registry show a yearly increase of 3% to 5% since 2010 and recent rates up to approximately 35%.6,7

The benefit of radial access is particularly pronounced during primary PCI for STEMI, with reduced adverse clinical events including major bleeding and mortality.8-10 Despite this, radial access for primary PCI has been adopted at an even slower pace and remains underutilized,11 which is likely due to several reasons, including concerns about the possibility that the procedure may be prolonged if radial access is unsuccessful. Guidelines suggest that transitioning to performing primary PCI via the radial rather than femoral approach should not be considered until operators are proficient in radial access, having performed at least 100 elective radial access cases.12 Experienced radial operators achieve similar procedural durations and success rates using radial arterial access for PCI as compared to femoral arterial access,4 but even in experienced hands, a small proportion (approximately 5%) of radial procedures may still require crossover to femoral access to complete.13

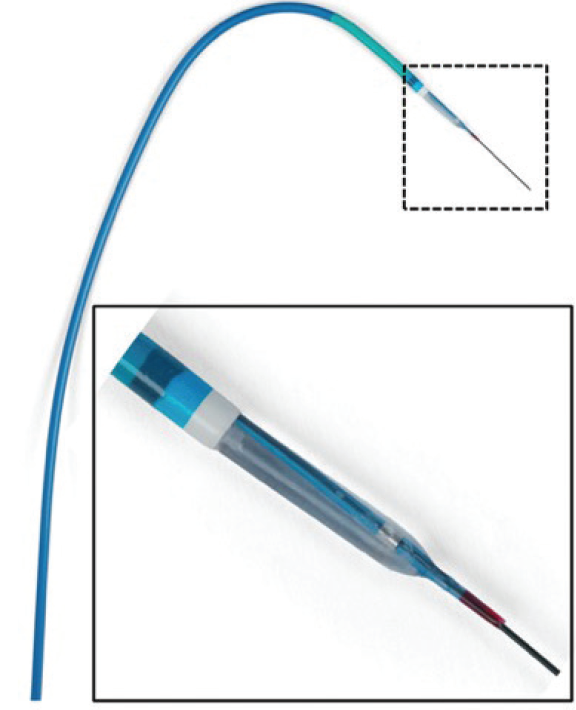

Figure 1. Example of BAT configuration with a standard 6-F guide catheter (Launcher, Medtronic). A semicompliant balloon is loaded onto the 0.014-inch angioplasty wire and partially inflated to taper the distal tip.

Even if there is successful cannulation of the radial artery, there are a number of reasons why it may not be possible to advance the guide catheter into the aortic root, including complex radial loops, tortuousity, artery spasm, and small-caliber radial arteries.13 During these situations, the sharp edge of the guide catheter tip can “dig” into the arterial wall, producing a “razor” effect and resulting in discomfort, difficulty advancing the guide catheter, and even radial artery perforation and forearm hematoma formation.14 The radial artery has a well-developed muscular wall with numerous α-adrenergic receptors that make it prone to developing intense spasm.15 This may theoretically be potentiated by circulating catecholamines and the increased sympathetic drive found in acute myocardial infarction, which may explain why the rates of radial access failure reported in patients treated for myocardial infarction (5.8%–9.4%)8,10,16 are higher than those for stable patients undergoing PCI (5%).13 This normally initiates a switch to femoral access, but if an attempt is made to forcibly advance the guide catheter through an area of intense arterial spasm, there may even be “shaving” of a segment of the wall of the artery, a recently recognized complication.17


Figure 2. The tip of the guide catheter causing the “razor” effect in an area of diffuse radial spasm (A). BAT deployed (B). Smooth, painless advancement of the guide catheter through the affected area (C).

Patel et al have described balloon-assisted tracking (BAT), which can overcome radial spasm and difficult anatomy and allows for successful advancement of the guide catheter through the initial arterial puncture.18,19 The BAT technique requires advancing a 0.014-inch angioplasty wire through the affected segment. A 15- to 20-mm semicompliant angioplasty balloon (2 mm in diameter) is then threaded over it and positioned halfway out of the guide catheter. Once in position, the balloon is inflated to 3 to 6 atm (Figure 1). The balloon tapers the distal edge of the guide catheter, preventing the razor effect, maintaining coaxial alignment, and allowing safe and painless advancement of the catheter (Figure 2) in a variety of situations, including small-caliber radial arteries, radial perforation, radial loops, and resistant radial spasm.18,19

The feasibility of routine BAT during difficult radial access in PCI was tested in an experienced radial center.20 In this study, BAT was attempted in 76 of 1,334 patients undergoing radial PCI and was successful in 69 (91%) cases, increasing the institute’s radial access success rate from 92.4% to 97.5%.20 This study included a large cohort (n = 818) of patients undergoing primary PCI. BAT was attempted in 30 cases in which operators had difficulty tracking a 6-F guide catheter to the aorta, with success in 25 (83%) cases. In this group, as expected, there was a delay in reperfusion (measured as procedure start to first device time) if there were difficulties with radial access, which occurred regardless of whether BAT (23 minutes) or crossover to femoral access (24 minutes) was used (compared with procedure to device time if no access issues of 17 minutes).20 There was no significant difference in whether BAT or femoral crossover was used (in fact, BAT was nonsignificantly quicker); however, BAT maintained the advantages of radial access.

Other Considerations

There were circumstances in which BAT was not successful, and the majority (6/7) occurred due to failure to pass the 0.014-inch angioplasty wire through the segment of spasm.20 For this reason, a hydrophilic-coated angioplasty wire could be considered to increase the chance of successful wire passage. If spasm occurs during catheter exchange, there may already be a 0.035-inch J-tipped guidewire in the aortic root. In this situation, it is possible to use the “mother-and-child” technique, in which a smaller-bore catheter is introduced into the guide catheter in order to taper the end, filling the space between the 0.035-inch guidewire and the guide catheter edge, which is responsible for the razor effect.21 The inner catheter must be longer than the guide catheter, so a 5-F pigtail catheter (110 cm) is a good choice, although any long diagnostic catheter can be used. The inner catheter must also fit inside the guide catheter. If the internal lumen diameter of the 6-F guide catheter is < 0.071 inches, then a 4-F rather than a 5-F diagnostic catheter may be required. Both a 5-F pigtail catheter and a long 5-F JR4 diagnostic catheter have been used inside 6-F guides to overcome radial spasm during primary PCI.20,21

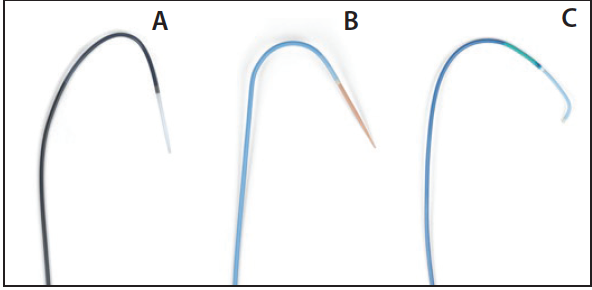

Figure 3. Alternative ways to achieve distal guide catheter tapering to overcome the razor effect. A 7.5-F Sheathless Eaucath guide catheter with insert (A). A 7-F Vista Brite guide catheter with Railway insert (B). A 6-F Launcher guide catheter with long 5-F JR4 diagnostic catheter inserted (C).

Special sheathless catheters have been designed with a removable insert that is designed to fulfill this tapering role while acting as the introducing dilator and to also reduce the invasiveness of PCI by eliminating the use of an arterial sheath (Figure 3). The Sheathless Eaucath guide catheter (Asahi Intecc Co Ltd.) has the external diameter of a 6-F arterial sheath and the internal lumen of a 7.5-F guide, allowing for more complex PCI through the same size arteriotomy.22

Sheathless guides have been shown to be effective in primary PCI and were used in 478 patients with STEMI, with a procedural success rate of 97.5%.23 Inserting these guide catheters does require the initial introduction and removal of a radial sheath, keeping a 0.035-inch wire in situ to support advancement of the dilating/tapering insert. This may be overcome using the Railway sheathless guide cath­eter system (Cordis, a Cardinal Health company) (Figure 3), which consists of a dedicated introduction insert that can be advanced directly over a 0.021-inch wire and an exchange insert that can accom­modate the 0.035-inch wire if the guide catheter needs to be changed. These inserts are used with standard Vista Brite guide catheters (Cordis, a Cardinal Health company). The Railway system is CE Mark approved in Europe but is not currently approved in the United States.


The BAT technique is a useful tool to overcome radial access difficulties complicated by severe spasm, tortuosity, or radial loops. BAT can be used in primary PCI as an alternative to crossing over to femoral access, without delaying the delivery of reperfusion therapy and allowing the procedure to be completed without an additional femoral puncture, an important consideration in delivering contemporary evidence-based primary PCI.

1. Levine GN, Bates ER, Blankenship JC, et al. 2015 ACC/AHA/SCAI focused update on primary percutaneous coronary intervention for patients with ST-elevation myocardial infarction: an update of the 2011 ACCF/AHA/SCAI guideline for percutaneous coronary intervention and the 2013 ACCF/AHA guideline for the management of ST-elevation myocardial infarction [published erratum appears in J Am Coll Cardiol. 2016;67:1506]. J Am Coll Cardiol. 2016;67:1235-1250.

2. Mamas MA, Ratib K, Routledge H, et al. Influence of arterial access site selection on outcomes in primary percutaneous coronary intervention: are the results of randomized trials achievable in clinical practice? JACC Cardiovasc Interv. 2013;6:698-706.

3. Kiemeneij F, Laarman GJ. Percutaneous transradial artery approach for coronary stent implantation. Cathet Cardiovasc Diagn. 1993;30:173-178.

4. Jolly SS, Yusuf S, Cairns J, et al. Radial versus femoral access for coronary angiography and intervention in patients with acute coronary syndromes (RIVAL): a randomised, parallel group, multicentre trial. Lancet. 2011;377:1409-1420.

5. Jolly SS, Amlani S, Hamon M, et al. Radial versus femoral access for coronary angiography or intervention and the impact on major bleeding and ischemic events: a systematic review and meta-analysis of randomized trials. Am Heart J. 2009;157:132-140.

6. Blankenship JC. The compleat radialist. J Invasive Cardiol. 2017;29:225-226.

7. Feldman DN, Swaminathan RV, Kaltenbach LA, et al. Adoption of radial access and comparison of outcomes to femoral access in percutaneous coronary intervention: an updated report from the national cardiovascular data registry (2007–2012). Circulation. 2013;127:2295-2306.

8. Romagnoli E, Biondi-Zoccai G, Sciahbasi A, et al. Radial versus femoral randomized investigation in ST-segment elevation acute coronary syndrome: the RIFLE-STEACS (Radial Versus Femoral Randomized Investigation in ST-Elevation Acute Coronary Syndrome) study. J Am Coll Cardiol. 2012;60:2481-2489.

9. Karrowni W, Vyas A, Giacomino B, et al. Radial versus femoral access for primary percutaneous interventions in ST-segment elevation myocardial infarction patients: a meta-analysis of randomized controlled trials. JACC Cardiovasc Interv. 2013;6:814-823.

10. Mehta SR, Jolly SS, Cairns J, et al. Effects of radial versus femoral artery access in patients with acute coronary syndromes with or without ST-segment elevation. J Am Coll Cardiol. 2012;60:2490-2499.

11. Howe MJ, Seth M, Riba A, et al. Underutilization of radial access in patients undergoing percutaneous coronary intervention for ST-segment-elevation myocardial infarction: insights from the Blue Cross Blue Shield of Michigan Cardiovascular Consortium. Circ Cardiovasc Interv. 2015;8:e002036.

12. Rao SV, Tremmel JA, Gilchrist IC, et al. Best practices for transradial angiography and intervention: a consensus statement from the society for cardiovascular angiography and intervention’s transradial working group. Catheter Cardiovasc Interv. 2014;83:228-236.

13. Dehghani P, Mohammad A, Bajaj R, et al. Mechanism and predictors of failed transradial approach for percutaneous coronary interventions. JACC Cardiovasc Interv. 2009;2:1057-1064.

14. Patel T, Shah S, Sanghavi K, Pancholy S. Management of radial and brachial artery perforations during transradial procedures-—a practical approach. J Invasive Cardiol. 2009;21:544-547.

15. He GW, Yang CQ. Characteristics of adrenoceptors in the human radial artery: clinical implications. J Thoracic Cardiovasc Surg. 1998;115:1136-1141.

16. Valgimigli M, Gagnor A, Calabro P, et al. Radial versus femoral access in patients with acute coronary syndromes undergoing invasive management: a randomised multicentre trial. Lancet. 2015;385:2465-2476.

17. Jaworski C, Brown AJ, Hoole SP, et al. From radial artery to embolus: a rare complication of transradial angiography. JACC Cardiovasc Interv. 2015;8:e177-e178.

18. Patel T, Shah S, Pancholy S, et al. Balloon-assisted tracking: a must-know technique to overcome difficult anatomy during transradial approach. Catheter Cardiovasc Interv. 2014;83:211-220.

19. Patel T, Shah S, Pancholy S. Balloon-assisted tracking of a guide catheter through difficult radial anatomy: a technical report. Catheter Cardiovasc Interv. 2013;81:E215-E218.

20. Obaid D, Hailan A, Chase A, et al. Balloon-assisted tracking use reduces radial artery access failure in an experienced radial center and is feasible during primary PCI for STEMI. J Invasive Cardiol. 2017;29:219-224.

21. Garg N, Sahoo D, Goel PK. Pigtail assisted tracking of guide catheter for navigating the difficult radial: Overcoming the “razor effect”. Indian Heart J. 2016;68:355-360.

22. From AM, Bell MR, Rihal CS, Gulati R. Minimally invasive transradial intervention using sheathless standard guiding catheters. Catheter Cardiovasc Interv. 2011;78:866-871.

23. Miyasaka M, Tada N, Kato S, et al. Sheathless guide catheter in transradial percutaneous coronary intervention for ST-segment elevation myocardial infarction. Catheter Cardiovasc Interv. 2016;87:1111-1117.
